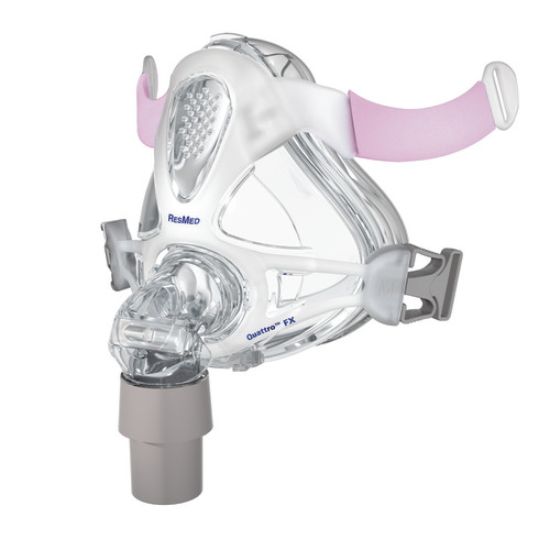

Quick answer: This is the genuine ResMed Quattro FX frame system — the frame, dual-wall Spring Air™ cushion, and elbow together, without headgear — compatible with both the Quattro FX and Quattro FX for Her full face masks (all parts are interchangeable; the for-Her difference is the headgear). It rebuilds or refreshes your mask if the headgear is still good. The Quattro FX uses a spring frame (no forehead brace) for a clear field of vision. Choose your size — Small (61724), Medium (61725), Large (61726); the for-Her range is Small/Medium. This is a vented CPAP mask part. Headgear not included. Prescription typically required.
⚠️ Important — magnets (implant safety)
The Quattro FX frame system uses magnets (in the frame and the lower headgear clips) to help connect the mask, with a magnetic field strength up to 400 mT. Keep the magnets at least 6 in (150 mm) away from active medical implants or devices that can be affected by magnetic interference — including pacemakers, implantable defibrillators (ICDs), neurostimulators, CSF (cerebrospinal fluid) shunts, insulin/drug pumps, aneurysm clips, metallic implants, and metallic splinters (especially in the eye). This applies to you and to anyone in close physical contact with the mask. If you or a close contact has such an implant, consult your clinician before use. Follow ResMed's magnet guidance in the mask user guide.
What's included
- 1 × mask frame (spring frame)
- 1 × dual-wall Spring Air cushion (in your selected size)
- 1 × elbow
Not included: headgear.
About this part
The frame system is the structural core of the Quattro FX — frame, sealing cushion, and elbow — so you can refresh the parts that wear while keeping your existing headgear.
- Spring frame, no forehead brace — flexes and moves separately from the cushion to absorb movement and hold the seal, with a clear field of vision and minimal forehead contact (fewer red marks).
- Dual-wall Spring Air cushion — the outer membrane inflates around the nose to reduce leaks and pressure sores; soft on skin with a strong seal, sitting low on the nasal bridge.
- "Swing seal" fitting — place the cushion over the bridge of your nose, then swing the mask down to rest between your bottom lip and chin for an easy, strong seal.
- Lightweight — comfort and stability without bulk.
Fits Quattro FX and Quattro FX for Her — all frame/cushion/elbow parts are interchangeable between the two; the for-Her version differs in headgear (pink) and sizing.
Vented CPAP mask — note
This is the vented Quattro FX (CPAP) frame system. It's different from the Quattro FX NV (non-vented) ventilator mask (blue elbow), which has no vents and is for non-invasive ventilation only. This listing is the CPAP version.
Sizing — important (cushion is size-specific)
- Available in Small (61724), Medium (61725), Large (61726); the for-Her range is Small/Medium.
- ⚠️ Cushions are size-specific — match the cushion to your frame.
- Matching headgear (sold separately): for-Her pink (Small 62506 / Medium 62507); standard blue (Small 61734 / Medium 61733 / Large 61738).
Key features
- Genuine ResMed Quattro FX frame system — frame + Spring Air cushion + elbow.
- Fits Quattro FX and FX for Her — interchangeable parts.
- No headgear — refresh the frame/cushion, keep your headgear.
- Spring frame, no forehead brace — clear field of vision.
- Dual-wall Spring Air cushion — strong, comfortable seal.
- Contains magnets — keep away from implants (see safety note).
Specifications
| Specification | Detail |
| Product type | Full face mask frame system (frame + cushion + elbow, no headgear) |
| Compatible masks | ResMed Quattro FX and Quattro FX for Her (full face) |
| Sizes / codes | Small 61724 · Medium 61725 · Large 61726 (for Her: S/M) |
| Includes | Frame, dual-wall Spring Air cushion, elbow |
| Not included | Headgear |
| Magnets | Yes — in frame and lower headgear clips (up to 400 mT); keep ≥6 in from implants |
| Matching headgear | For Her pink (62506/62507) · standard blue (61734/61733/61738) |
| Vent | Vented (CPAP) — not the NV (non-vented) ventilator mask |
| Sizing note | Cushions are size-specific to the frame |
| Compatibility | Any standard CPAP/BiLevel + 22 mm tubing; AirMini needs adapter |
| HCPCS | A7030 |
| Material | Silicone cushion; latex-, PVC-, DEHP-free |
| Prescription | Typically required |
| Brand | ResMed |
Frequently asked questions
What's included? The frame, dual-wall Spring Air cushion, and elbow. Headgear is not included.
Does it fit the Quattro FX for Her? Yes — the Quattro FX and Quattro FX for Her share interchangeable frame/cushion/elbow parts. The for-Her difference is the headgear (pink) and sizing.
Does it have magnets? Yes — the frame and lower headgear clips use magnets (up to 400 mT). Keep them at least 6 in (150 mm) from pacemakers, ICDs, neurostimulators, shunts, pumps, and other implants (yours or a close contact's). See the safety note.
Is this a CPAP or ventilator part? This is the vented CPAP version. The Quattro FX NV (non-vented) is the separate ventilator mask — don't confuse the two.
Which size should I choose? Small (61724), Medium (61725), or Large (61726); the for-Her range is Small/Medium. Match the cushion to your frame.
What headgear do I need? For Her: pink (62506/62507). Standard: blue (61734/61733/61738). Sold separately.
Do I need a prescription? A frame system with cushion is the core of the mask and typically requires a prescription. We can help — contact us.
Can I get it delivered in Brooklyn or shipped nationwide? Yes — Task Supply Corp offers USPS shipping throughout the continental U.S., plus local pickup and delivery in Brooklyn and all five boroughs of New York City.
This is a vented full face CPAP mask component that contains magnets. Keep the magnets away from implants as described, use with a compatible CPAP/BiLevel machine per the mask's user guide, keep the vent holes clear, and follow all oxygen-safety precautions.
