Quick answer: This is the genuine ResMed X30i Frame System without headgear — and unlike a bare "frame only," this system includes the near-complete mask: the flexible top-of-head frame, the quick-release elbow, the oral cushion, and a set of nasal pillows (choose Small, Medium, or Large). It's the full X30i oral-nasal setup minus the headgear — ideal if you already own compatible headgear (including F30i headgear) and want to refresh or build your mask. Note: contains magnets. Headgear not included.
What's included

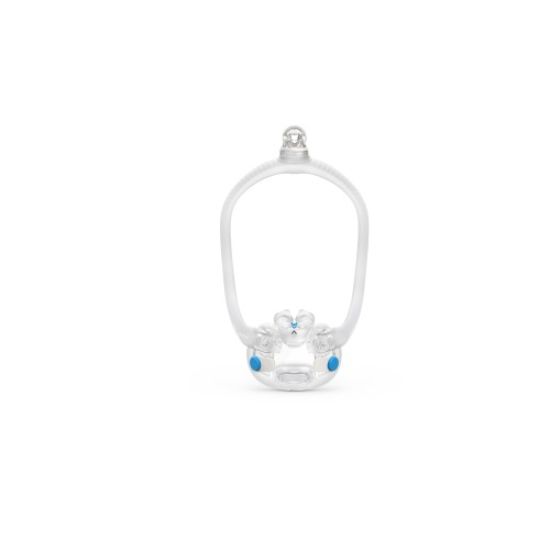

- 1 × AirFit X30i frame (top-of-head, with quick-release elbow, magnetic clips)
- 1 × X30i oral cushion (one-size, over-the-mouth)
- 1 × set of X30i nasal pillows (in your selected size — Small, Medium, or Large)
Not included: headgear.
About this part
The AirFit X30i is an oral-nasal ("hybrid") mask: nasal pillows deliver air through the nose while an oral cushion covers the mouth and holds the pillows in place — giving full-face coverage for mouth breathers with the stability and open field of view of nasal pillows. This Frame System bundles everything that makes up the mask except the headgear:
- Frame — the flexible, top-of-head SpringFit-style frame with two hollow side airways that route the tube up and out of the way, so you can sleep in any position with a stable seal.
- Quick-release elbow — QuietAir™ diffused venting; easy nighttime disconnect.
- Oral cushion — one-size, covers the mouth and stabilizes the pillows.
- Nasal pillows — in your chosen size (S/M/L), the nasal seal.
Because it comes without headgear, it's the economical way to refresh or customize the mask if your headgear is still good — and since the X30i shares its frame and headgear with the AirFit F30i, existing F30i headgear works with it.
Frame vs frame system: a bare "frame only" (Small 63368 / Standard 63369 / Large 63370) is just the frame — no cushions. This Frame System adds the oral cushion and nasal pillows, so it's a near-complete mask (just add headgear).
Frame size: Standard, Small and Large frames. The frame size is separate from the nasal-pillow size — most users prefer the Standard frame. Match the frame size you currently use.
Important: magnets & implants
This mask uses magnetic clips. Magnets are contraindicated for some people — including those with certain active implants (pacemakers, ICDs, neurostimulators, CSF shunts, insulin/infusion pumps) or metallic implants/objects (aneurysm clips, stents, metallic eye fragments, certain ocular or hearing implants). Keep mask magnets away from such implants/devices, follow the contraindications in the mask's user guide, and consult your physician. See resmed.com/magnetupdate for ResMed's magnet guidance.
Key features
- Genuine ResMed AirFit X30i Frame System — frame + elbow + oral cushion + nasal pillows.
- Near-complete mask, minus headgear — more than a bare frame.
- Oral-nasal hybrid — full-face coverage + nasal-pillow stability.
- Top-of-head tube-up design — sleep in any position; clear field of view.
- Choose nasal-pillow size (S/M/L) — oral cushion is one-size.
- Works with F30i headgear — shared frame/headgear (headgear not included).
- Magnetic clips + QuietAir™ elbow — see magnet note.
Specifications
| Specification | Detail |
| Product type | Frame system (frame + elbow + cushions, without headgear) |
| Compatible mask | ResMed AirFit X30i (oral-nasal) |
| Frame size | Standard, Small, Large |
| Includes | Frame + quick-release elbow + oral cushion + nasal pillows (S/M/L) |
| Nasal pillow size | Choose Small / Medium / Large |
| Oral cushion | One-size |
| Venting | QuietAir™ diffused (elbow) |
| Clips | Magnetic (see contraindications) |
| Frame/headgear | Shared with AirFit F30i |
| Not included | Headgear |
| Prescription | Required |
| Brand | ResMed |
Frequently asked questions
What's included? The Standard frame, quick-release elbow, oral cushion, and a set of nasal pillows (your chosen size) — without headgear.
How is this different from the "frame only" (63369)? The frame only is just the bare frame. This Frame System adds the oral cushion and nasal pillows — a near-complete mask, just add headgear.
Do I need headgear separately? Yes — headgear isn't included. The X30i shares headgear with the F30i, so F30i headgear works.
Which nasal-pillow size do I choose? Small, Medium, or Large — match your fit. The oral cushion is one-size, and the frame size (Standard here) is separate.
Does it contain magnets? Yes — magnetic clips. See the contraindications above if magnets are a concern for you or someone in close contact with the mask.
Do I need a prescription? Sellers vary — many require a prescription. Contact us if you're unsure.
Can I get it delivered in Brooklyn or shipped nationwide? Yes — Task Supply Corp offers USPS shipping throughout the continental U.S., plus local pickup and delivery in Brooklyn and all five boroughs of New York City.
This is a prescription medical device. It contains magnets — follow the magnet contraindications in the user guide. Use according to the ResMed user guide and your healthcare provider's guidance.
